| Spesifikasi : |
|
|
| A |
Reagent Kimia air |
|
|
| ▪ |
COD range |
: |
0-150mg/l (50 test) |
| |
|
: |
0-1500 mg/l (50 test) |
| |
|
|
|
| B |

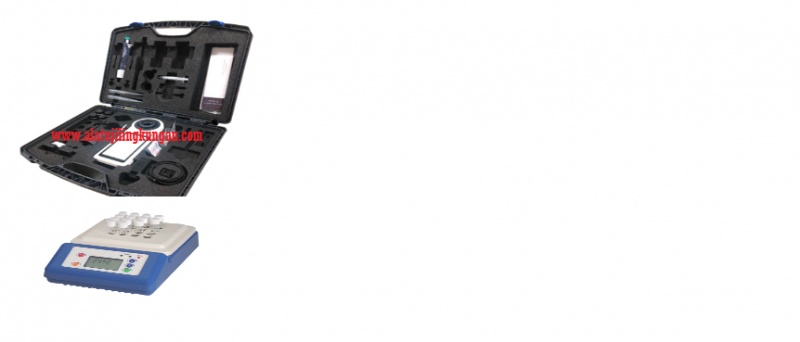

Portable Photometer Water Analysis |
|
| ▪ |
Panjang Gelombang |
: |
390-950nm |
| |
|
: |
18 panjang gelombang : |
| |
|
|
410nm, 435nm, 460nm, 485nm, 510nm, |
| |
|
|
535nm, 560nm, 585nm, 610nm, 645nm, |
| |
|
|
680nm, 705nm, 730nm, 760nm, 810nm |
| |
|
|
860nm, 900nm dan 940nm |
| ▪ |
Parameter yang diukur |
: |
Lebih 140 parameter (Option) |
| ▪ |
Koneksi |
: |
WiFI, Bluetooth 4.2 |
| ▪ |
Layar Monitor |
: |
5.5" Layar Sentuh |
| ▪ |
Kalibrasi |
: |
Internal kalibrasi |
| ▪ |
Memory |
: |
Mampu menyimpan lebih 5000 data |
| ▪ |
Pengaturan Jam/waktu |
: |
Selalu terkini (Real-Time-Clock) |
| ▪ |
Mati otomatis |
: |
10 menit jika tidak dioperasikan, |
| |
|
|
dapat disetting sesuai kebutuhan |
| ▪ |
Panduan operator |
: |
Tersedia di Photometer |
| ▪ |
Sumber tenaga |
: |
8500 mA Li-Lo-Battery |
| ▪ |
Pilihan Bahasa |
: |
Tersedia Bahasa Indonesia |
| C |
Thermoreactor |
|
|
| ▪ |
Reactor type |
: |
Dry temperature control device |
| ▪ |
Number of vial cells |
: |
16 cells shafts for reaction cell |
| |
|
|
16mm ±0.2mm |
| ▪ |
Temperature setting |
: |
100˚C, 120˚C, 150˚C, fixed programs, |
| |
|
|
and 50˚C to 199˚C user setting |
| ▪ |
Controlling accuracy |
: |
±1˚C(±1 digit) |
| ▪ |
Temperature stability |
: |
±1˚C |
| ▪ |
Heating from 25˚C to |
: |
25°C to 100˚C approx. 5 min. |
| |
|
: |
25°C to 120˚C approx. 6 min. |
| |
|
: |
25°C to 150˚C approx.9 min. |
| |
|
: |
25°C to 165˚C approx.11 min. |
| |
|
: |
25°C to 199˚C approx. 15 min. |
| ▪ |
Programmable Temp |
: |
50˚C to 199˚C |
| ▪ |
Programmable time |
: |
0-18 hours, Audio signal and heating |
| |
|
|
stopped when the time expired |
| ▪ |
Temp. correction |
: |
±9˚C adjustment for thermoblock |
| ▪ |
Ambient temperature |
: |
10~50˚C |
| ▪ |
Overheating protector |
: |
Yes |
| ▪ |
Power supply |
: |
220 VAC ±10%, 50/60 Hz |
| D |
Perlengkapan Alat |
: |
|
| ▪ |
Plastic carrying-case with foam insert |
|
|
| ▪ |
Glass Vial 24mm x 10ml (4 pcs) |
|
|
| ▪ |
light shield (1 pcs) |
|
|
| ▪ |
Vial adapter 24mm (1 pcs) |
|
|
| ▪ |
Stirring rod 10,5cm (1 pcs) |
|
|
| ▪ |
Plastic syringe 10ml (1 pcs) |
|
|
| ▪ |
Vial cleaning brush (1 pcs) |
|
|
| ▪ |
Microfibre cleaning cloth for vials (1 pcs) |
|
| ▪ |
Bluetooth USB dongle (1 pcs) |
|
|
| ▪ |
Charger with cable (USB-Type-C) |
|
|
| ▪ |
Buku petunjuk penggunaan alat. |
|
|
