Produk Detail

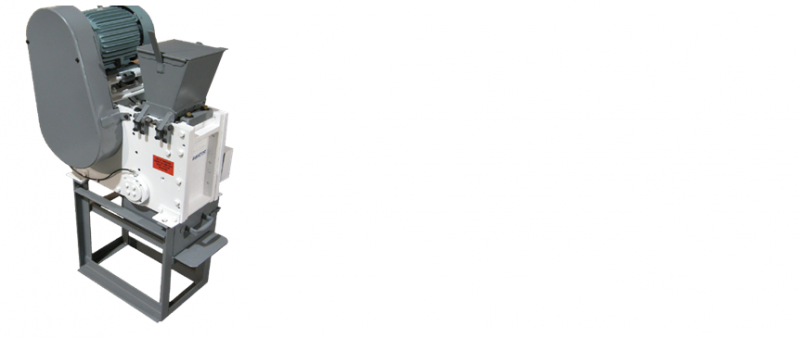

| TERMINATOR JAW CRUSHER | ||
| Type | : | JCT#1AL |
| Brand | : | TM ENGINEERING |
Spesifikasi :
| ▪ | TERMINATOR Jaw Crusher Model JCT#1AL- Automatic Lubrication, | ||
| capacity 5" X 7" Unit, equipped with one set of smooth or serrated jaws | |||
| (alloy 1 or 2), 208/220/440/575 volt, 3 phase, 60 cycles, 5 HP motor, | |||
| automatic lubricating system also powered by electric motor, accessories for | |||
| adjustment of jaws, and rubber mat for underneath crusher. | |||
| This model needs only to be connected to your power supply, | |||
| all pre-wiring is done at the factory | |||
| ▪ | Maximum Feed Size | : | 130mm x 178mm |
| ▪ | Minimum Output | : | 95% Less than 2mm (-10mesh) |
| ▪ | Output size at approx half jaw opening | : | 97% less than 6mm |
| ▪ | Troughput at minimum output size | : | 100kg/hr |
| ▪ | Troughput at half jaw opening output | : | 360kg/hr |
| ▪ | Motor | : | 3,7 kW or 5.5 kW motor, 3 phase, 50 or 60Hz |
| ▪ | Dimension | : | 387mm at base 560mm top motor x 104mm x 486mm |
| : | on the stand | ||
| ▪ | Complete unit | : | Safety (Feeder) hopper |
| Stand 24" with drawer. | |||
| Chrome steel (allow 1). | |||
