HUMAN VIBRATION METER

  • Merk : MMF
  • Minimal Pembelian : 1 Unit
  • Pengiriman : 3 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 29.981 Kali
  • Pembaruan : 09-05-2025 12:42
Dapatkan Spesifikasi Harga HUMAN VIBRATION METER Produk Terbaik dari Alat Uji Lingkungan Jual EPAM 5000 HAZ DUST `|` TSS METER `|` FLUE GAS ANALYZER `|`SANITARIAN KIT`|` FOOD SECURITY KIT `|` ANTROPOMETR `|` FOOD CONTAMINATION `| HIGH VOLUME AIR SAMPLER `|` PORTABLE HIGH VOLUME AIR SAMPLERS`|` LUX METER `|` GAS DETECTOR |

Produk Detail

PORTABLE HUMAN VIBRATION METER
(Hand Arm and Whole Body)
Type : VM31-HAWB (MMF-Germany)
Fungsi : Alat ukur paparan getaran mesin pada tubuh

Spesifikasi :
▪ Input : :  4 low-power IEPE inputs; 1 mA /
    17 V; TEDS support, IEEE1451.4, Template 25
▪ Sensor :  : Low-power IEPE, sensitivity 0.8 - 120 mV/ms-²
▪ Measuring range (sensor 1 mV/ms-² :
Acceleration : :  800 m/s²;
velocity :  : 100 - 10000 mm/s
Displacement :  : 250 - 15000 μm
▪ Linearity range :  : >75 dB for ± 6 % error
▪ Noise :  : < 0,003 m/s²
▪ Filter :  : Weighting filters Wb, Wc, Wd,
    Wh, Wj, Wk, Wm, unweighted:
    6.3 . 1259 Hz (H/A) / 0.4 - 100 Hz (G/K)
 Acceleration : : 0.2 - 1500Hz / 1 - 1000 Hz;
velocity :  : 1-100Hz/ 2-1000Hz/ 10 -1000 Hz;
displacement : :  5 - 250 Hz
▪ Daily exposure A(8) :  : A(8) calculation for several
    activities and test persons by
    Excel macro vm31.xlsm
▪ Frequency analysis (FFT) :  : 125 lines for X/Y/Z, peak
    spectrum of acceleration, 3 - 240
    / 6 - 480 / 12 - 960 / 24 - 1920 Hz
▪ Data memory :  : Flash, 10 000 measurements,
    1000 FFTs, each with date, time and comment
▪ Display :  : OLED, 128 x 160 pixels, colored
▪ USB interface : :  USB 2.0, full-speed, CDC mode
    (virtual COM port), via cable VM2x-USB
▪ Battries :  : 3 accumulators HR03 or Alkaline
    cells LR03 (size AAA), 10 - 14
    hours operation
▪ Size :  : 5 in x 2.5 in x 1.1 in; 5 oz

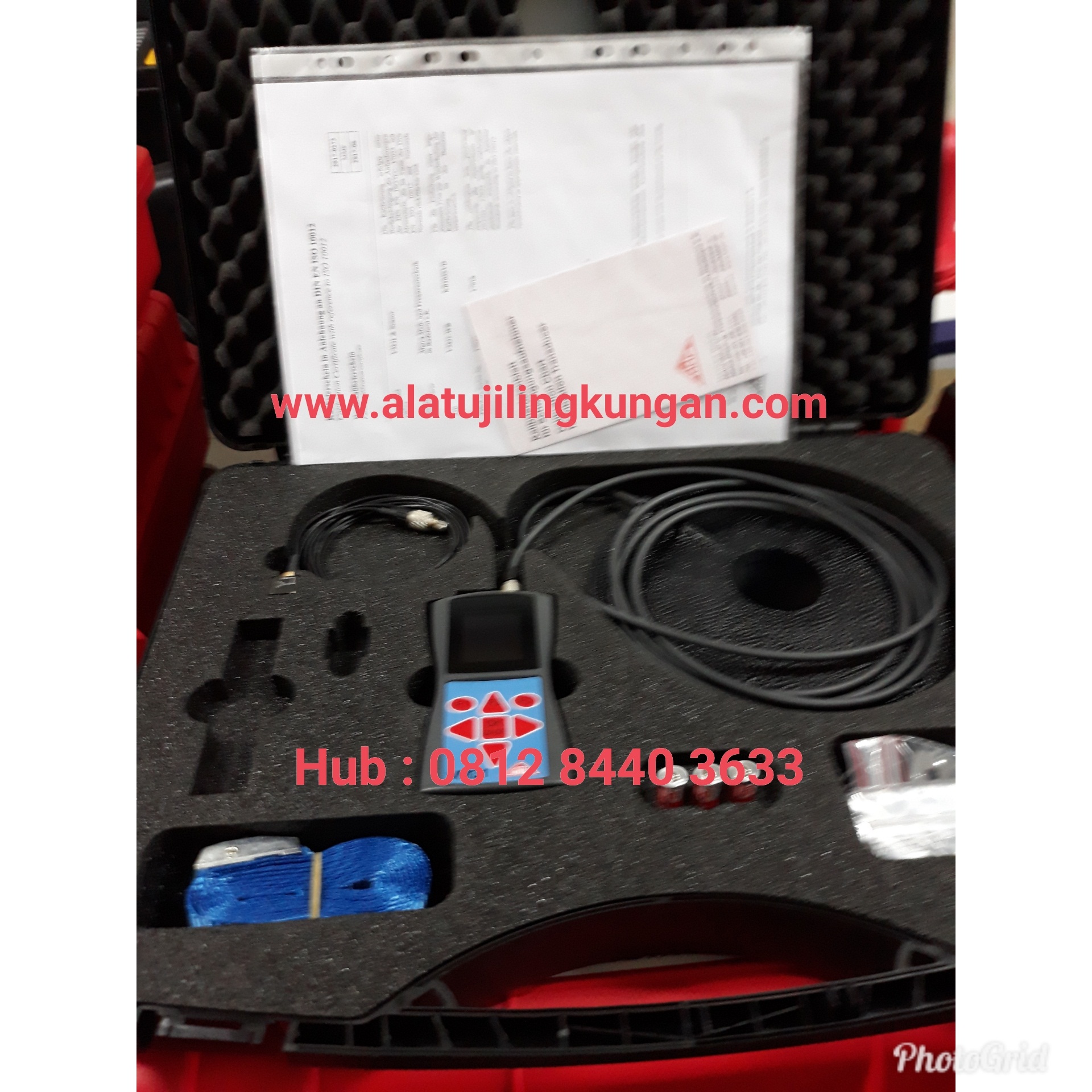

▪ Complete Unit :
a. Main Unit
b. Triaxial accelerometer
c. Sensor kabel 3 m
d. Triaxial Set accelerometer
e. Handle Adapter
f. USB cable VM2x-USB,
g. Batteries,
h. Instruction manual,
i. Plastic carrying case
