SOUND LEVEL METER
Produk Detail

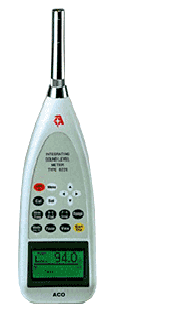

SOUND LEVEL METER TYPE 2 AND CALIBRATORType : 6226
Fungsi : Alat ukur kebisingan suara
Spesifikasi :
|
A |
Sound Level Meter |
||||||||
|
▪ |
Range |
: |
28dB to 130dB (A) |
||||||
|
: |
33dB to 130dB (C) |
||||||||
|
: |
38dB to 130dB (F |
||||||||
|
▪ |
Level Maximum |
137 dB rms, 130 dB at c.f.3 |
|||||||
|
▪ |
Time Weighting |
Fast and Slow |
|||||||
|
▪ |
Display |
: |
Liquid crystal and Back light |
||||||
|
: |
Digital display |
||||||||
|
: |
4 digits, Display Period:1s |
||||||||
|
: |
Bar display |
||||||||
|
: |
Display Period:1s |
||||||||
|
▪ |
Parameters |
: |
Spl, Leq, Leq SPL, Le, Lmax, Lmin, Lx, Lpeak |
||||||
|
▪ |
Microphone |
: |
1/2 Electret condenser microphone |
||||||
|
▪ |
Battery |
: |
Four 1.5V alkaline cells IEC type LR6 |
||||||
|
▪ |
Size / weight |
: |
85(W)x284(H)x46(D). Approx.420g |
||||||
|
B |
Sound Calibrator |
: |
|||||||
|
▪ |
Tolerance SPL |
: |
94dB(±0.3dB) |
||||||
|
▪ |
Frequency |
: |
1000Hz(±0.1%) |
||||||
|
▪ |
Cover Microphone |
: |
Measurement Microphone |
||||||
|
1-inch and 1/2-inch (included |
|||||||||
|
(1/2-inch microphone Adapter) |
|||||||||
|
▪ |
Battery |
: |
Two Alkaline dry batteries |
||||||
|
▪ |
Approx |
: |
150 g |
||||||
|
C |
Complete Unit |
||||||||
|
▪ |
Main Unit and Calibrator |
||||||||
|
▪ |
Microphone / Preamp |
||||||||
|
▪ |
Windscreen |
||||||||
|
▪ |
Software |
||||||||
|
▪ |
Certificate Calibration |
||||||||
