DOUBLE BEAM UV-VIS SPECTROPHOTOMETER || JUAL DOUBLE BEAM UV-VIS SPECTROPHOTOMETER


  • Harga: CALL

  • Merk: OPTIMA

  • Minimal Pembelian: 1 Unit

  • Pengiriman: 3 hari sejak pembayaran

  • Lokasi: Jawa Barat - Depok

  • Dilihat: 9.774 Kali

  • Pembaruan: 26-04-2024 15:10

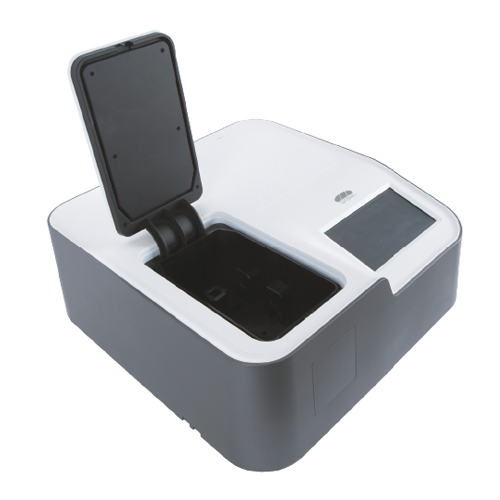

Double Beam UV-VIS Spectrophotometer
Type   : SP-3000DB
Brand  : OPTIMA (Japan)

Specification :
▪ Spectral Bandwidth : 1 nm (190 to 1100 nm)
▪ Display : Touch Sreen LCD colour
▪ Position Holder : Automatic Rotary, Multi cell Holder 8 position
▪ Photometrics System : Double-beam type
▪ Light Source : Tungsten Halogen Lamp & Deuterium Lamp
    : (Built-in light source auto interchanging motor)
▪ Detector : Silicon photodiode
▪ Monochromator : Czerny-Turner type with 1200 lines/mm blazed grating
▪ Lamp Interchange Wavelength : Set freely in the range of 340 ~ 410 nm (Default: 370 nm)
▪ Wavelength - Range : 190 ~ 1100 nm
  Accuracy : ± 0.3 nm (For entire range)
    : ± 0.1 nm (656.1 nm)
  Repeatability : ± 0.1 nm (656.1 nm)
  Setting : 0.05 nm
  Slew Rate : about 8,800 nm/min
  Scanning Speed : Max 6,000 nm/min
▪ Photometric - Range : Absorbance : -4 to 4 Abs
    : Transmittance : 0 % to 400 %
  Repeatability : ± 0.0002 at 0.5 Abs
    : ± 0.0006 at 1.0 Abs
    : ± 0.001 at 2.0 Abs
  Accuracy : Less than ± 0.005 Abs at 1.0 Abs
▪ Stray light : < 0.02 % Nal at 220 nm, NaNO₂ at 340 nm
▪ baseline Stability : < 0.0003 Abs/h
▪ baseline Flatness : ± 0.0005 Abs
▪ Center Height (Z-height) : 15 mm
▪ Operation : Windows 10 (Embedded PC);
▪ Display Size : 8 inch
▪ Power Requirement : 100~240 V; 50~60 Hz
▪ Dimensions
:
500(W)ｘ430(D)ｘ200(H)
▪ Weight : 14 kg
▪ Accessories : Standard Quartz cuvette (2 pcs)
    : Power Supply cord (1 pc)
    : Manual books (1 copy)
