GLASS SOLVENT WITH VACUUM FILTRATION || DIAPHRAGM VACUUM PUMP

  • Pengiriman : 3 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 103 Kali
  • Pembaruan : 29-01-2026 14:23
Dapatkan Spesifikasi Harga GLASS SOLVENT WITH VACUUM FILTRATION || DIAPHRAGM VACUUM PUMP Produk Terbaik dari Alat Uji Lingkungan Jual EPAM 5000 HAZ DUST `|` TSS METER `|` FLUE GAS ANALYZER `|`SANITARIAN KIT`|` FOOD SECURITY KIT `|` ANTROPOMETR `|` FOOD CONTAMINATION `| HIGH VOLUME AIR SAMPLER `|` PORTABLE HIGH VOLUME AIR SAMPLERS`|` LUX METER `|` GAS DETECTOR |

Produk Detail

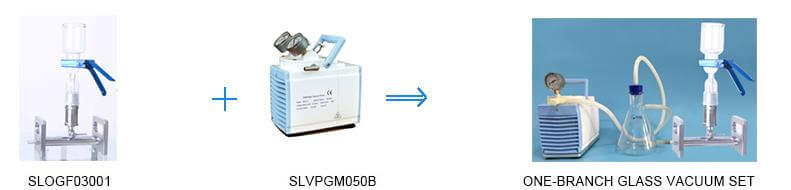

Glass Solvent with Vacuum Filtration
Type : M050A-1B

Description
1.Glass Vacuum Filtration Manifold
▪ Type : GF3001
▪ Branch : One-branch
▪ Funnel Size : 300 ml
▪ Funnel Valve : Glass
▪ Manifold Support : SS316L
▪ Support Screen : PTFE
▪ Membrane Filter (Diameter) : 47 mm or 50 mm
▪ Screen Pore Size : 20 µm
▪ Connection : Ground Joint
▪ Connection Bottle : 1000 ml
▪ Working Temperature : under 180-200℃
2. Diaphragm Vacuum Pump  :
▪ Vacuum Pump Type : 050A
▪ Speed of Evacuation (L/min) : 30
▪ Ultimate Pressure Vacuum : ≥0.08Mpa 200mbar
▪ Voltage Rating : 230Vac 50Hz
▪ Motor Power (W) : 160
▪ Inlet (mm) : Φ6
▪ Outlet (mm) : Φ6
▪ Pump Head : 1
▪ Temp of body (℃） : <55
▪ Dimensions (LxBxH) (mm) : 210x160x235
▪ Weight (Kgs) : 10
▪ Diaphragm : NBR
▪ Valves : NBR
▪ Noise Level (DB) : <50
▪ Temperature of working (℃） : 7 - 40
