Produk Detail

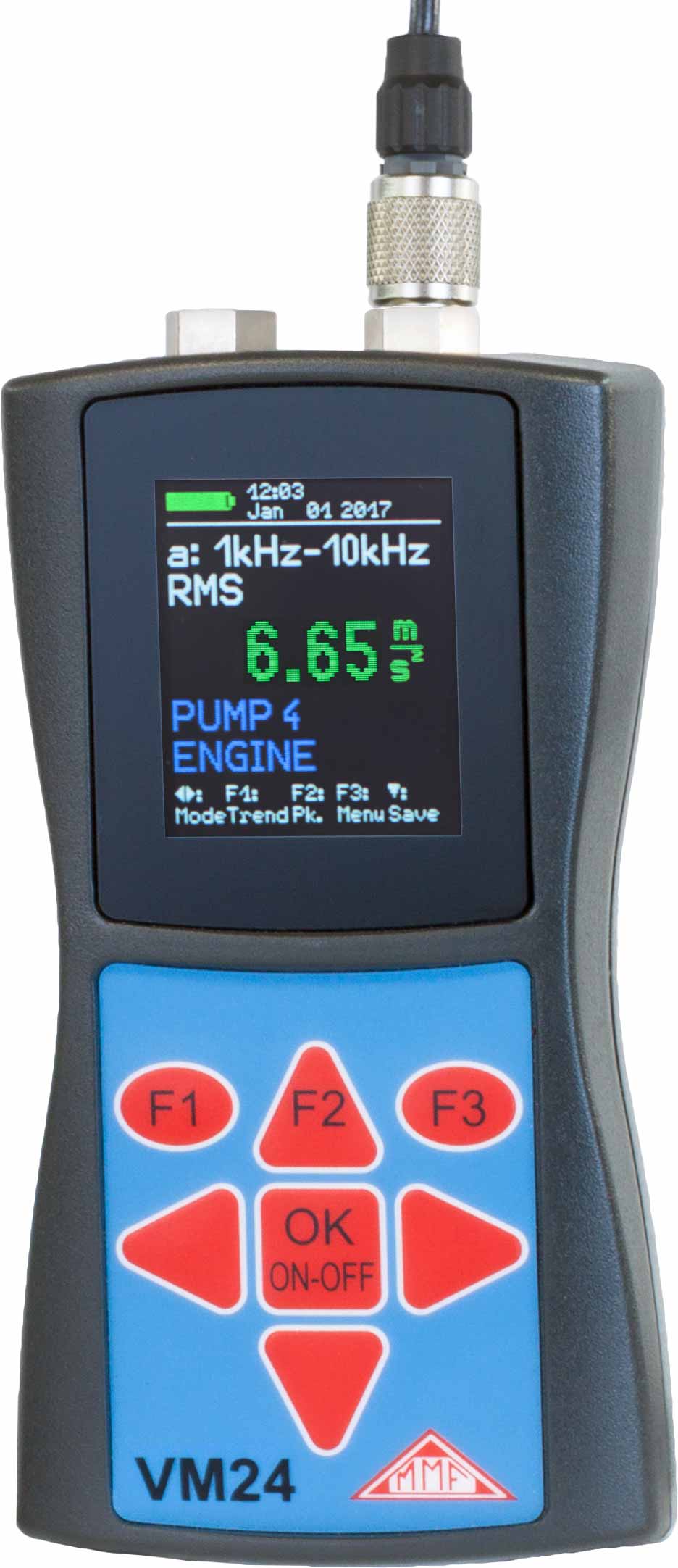

| Portable Vibration Meter |
| Type : VM-24 (Germany) |
| Fungsi : Alat ukur getaran Mesin |
Spesifikasi :
| 1 Main Unit | |
| ▪ Accelerometer | : 0,1 - 240 m/s²; 0,2 Hz - 10 kHz; |
| 3 Hz - 1 kHz, 1 kHz - 10 kHz | |
| ▪ Velocity | : 0,1 - 1000 mm/s; 2 - 300 Hz; 10 - 1000 Hz |
| ▪ Displacement | : 0,01 - 60 mm; 2 - 300 Hz |
| ▪ Bearing Diagnosis Coefficient | : 1 - 10 kHz; with memory for 1600 rms/peak start values |
| ▪ Accuracy Vibration | : ± 5 % ± 2 Digits |
| ▪ Data Memory | : 16000 values; USB interface optional PC software for data |
| ▪ Display | : OLED graphical display; colored; 128 x 160 pixels |
| ▪ Power Supply | : 3 x LR03 / HR03 / AAA 8 - 12 h; USB supply |
| ▪ Dimension/weight | : 125mm x 65mm x27mm; 140g with battre and without sensor |
| 2 Accelerometer | |
| ▪ Type | : Piezoelectric shear accelerometer with low-power |
| IEPE output; M12 connector;integral magnet, | |
| VMID read contact in base | |
| ▪ Sensitive | : 3,5 mV/ms-2 |
| ▪ Transverse sensitivity | : < 5 % |
| ▪ Dimensions, weight | : Ø 21, Height 34mm (without connector 53 g) |

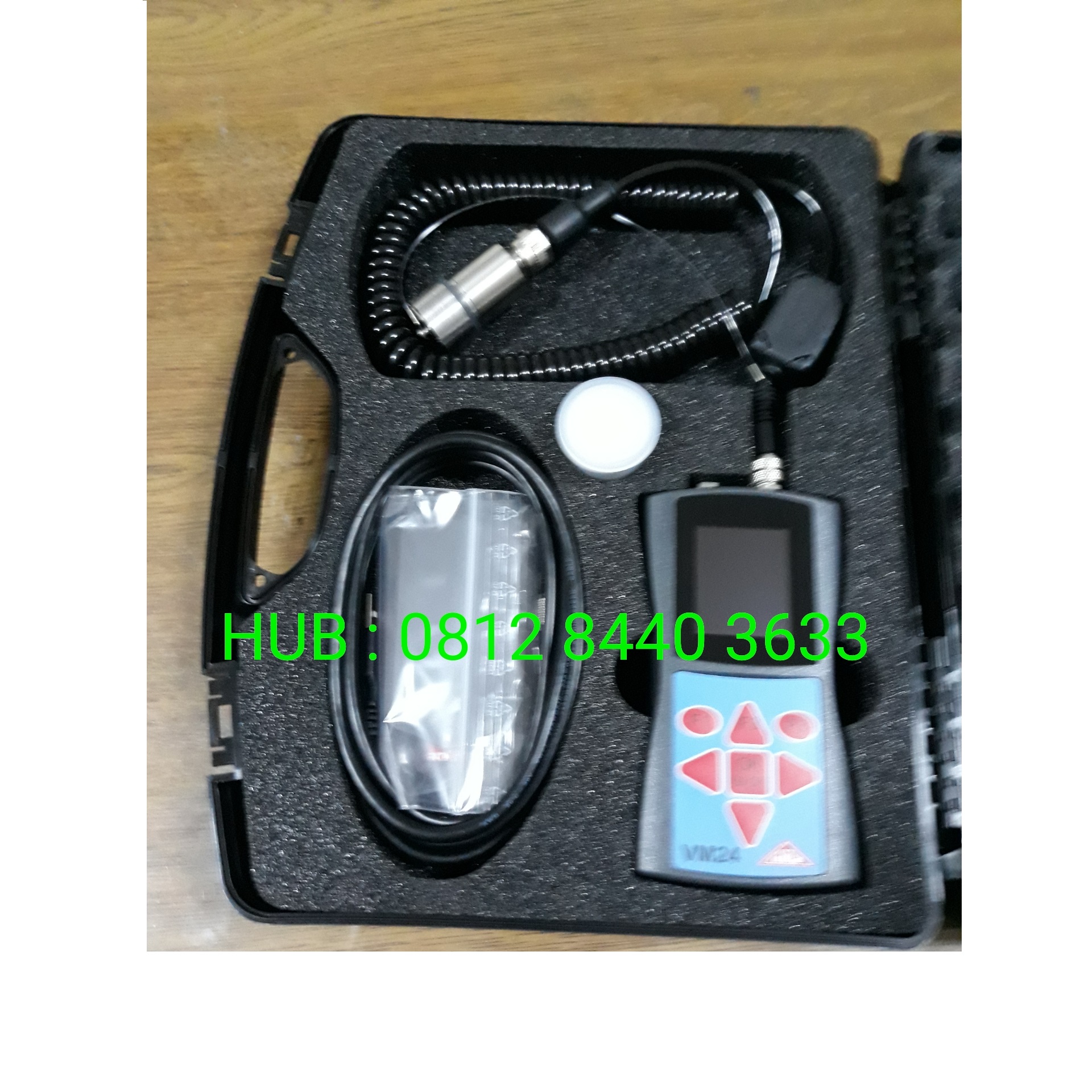

| ▪ Accessories | : Vibration sensor |
| : USB Cable | |
| : Instruction Manual | |
| : Plastic Case. |
