Produk Detail
Fever Screening, Thermal Scanner adalah alat deteksi suhu panas tubuh manusia ditempatkan di pintu masuk suatu negara di Bandara untuk mendeteksi panas sebagai indikasi virus SARS, Avian Flu / Epidemic screening / Swine Influenza A/H1N1, Virus Ebola.

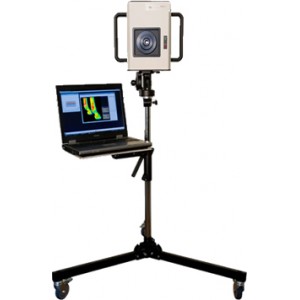

| Thermal Scanner |
| Negara Asal : USA |
| |
Specification : |
|
|
| ▪ |
Temp. Detection Applications |
: |
SARS / Avian Flu / Epidemic Screening / Swine Influenza A/H1N1 |
| |
|
: |
Temperature Sceening |
| |
|
: |
Threshold Temperature Detection |
| |
|
: |
Temperature Alarm Application |
| ▪ |
Detector |
: |
Focal Plane Array, Uncooled (25µm x 25µm) |
| ▪ |
Spectral range |
: |
7-13µm |
| ▪ |
Optical resolution (IR) |
: |
380 x 280 pixels |
| ▪ |
frame rate |
: |
Up to 80 Hz |
| ▪ |
Thermal sensitivity |
: |
0.04 K |
| ▪ |
Temperature sensitivity |
: |
0.01°C. (comparative Δ) |
| ▪ |
Temperature range |
: |
in medical specification 17°C to 38°C |
| |
|
: |
(scalable via software): -20°C - 250°C. Auto |
| |
|
: |
Ambient correction. |
| ▪ |
Optics |
: |
29° x 22° 18.7 mm or 38° x 29° 15 mm or |
| |
|
: |
13° x 10° 41 mm or 53° x 40° 10.5 mm. |
| ▪ |
Accuracy |
: |
(absolute temperature) ±2°C or ±2%. |
| |
|
: |
Accuracy: (comparative Δ) 0.01°C |
| ▪ |
PC interface |
: |
USB 2.0 or 3.0 |
| ▪ |
Ambient temperature |
: |
0°C to 70°C |
| ▪ |
Storage temperature |
: |
-40°C to 70°C |
| ▪ |
Relative humidity |
: |
20 - 80%, non condensing |
| ▪ |
Enclosure size |
: |
55 mm x 150 mm x 250 mm |
| ▪ |
Weight |
: |
1020 g (2lb 4oz) |
| ▪ |
Shock / vibration |
: |
25G, IEC 68-2-29 / 2G, IEC 68-2-6 |
| ▪ |
Power supply |
: |
USB powered. PC, Laptop or |
| |
|
: |
Tablet running Windows. |
| |
|
: |
WinTES3 camera control and analysis software. |
| ▪ |
Perlengkapan : |
: |
Camera Stand |
| |
|
: |
Sliding Arm Adapter |
| |
|
: |
USB Extender |
| |
|
: |
Cable |
| |
|
: |
Wall Bracket for Camera |
| |
|
: |
Tilt Correticon Plate |
| |
|
: |
Rechargeable power supply |
| |
|
: |
Software and PC. |
