| 2. Technical Data |
|
|
| ▪ Detection Principle |
: |
Electrochemical, PID, Laser, Thermosensitive, |
| |
|
Humidity Sensitivity |
| ▪ Display |
: |
Formula, gas concentration data, measurement trend |
| |
|
curve gas curve, battery, time, t emperature,humidity, |
| |
|
pressure (optional), pump condition, wireless status, |
| |
|
printer status, screen shot status |
| ▪ Alarm |
: |
Buzzer, red LED and alarm status on the display, fault alarm, |
| |
|
pump abnormal alarm, low battery alarm |
| ▪ Data storage |
: |
Independent SD memory card, Max.32G, measurement data |
| |
|
can be record automatically, customizable record time interval |
| ▪ Data transmission |
: |
Download the data by U-disk with one key |

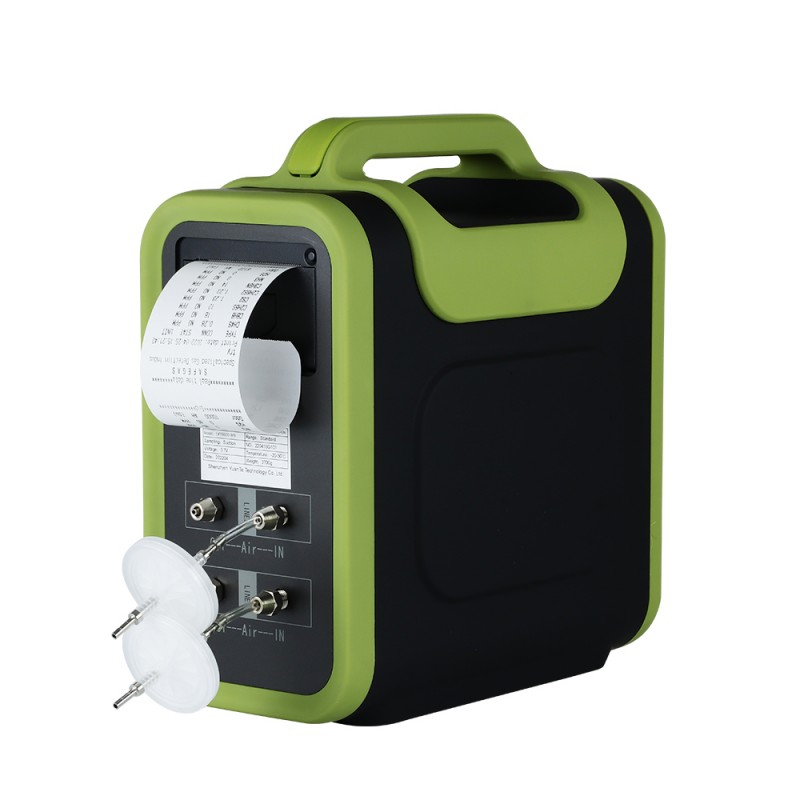

| ▪ Print function |
: |
internal bluetooth printer |
| ▪ Print content |
: |
Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc. |
| ▪ Pump flow rate |
: |
10 grades adjustable, flow range: 0-500 cc/Min |
| ▪ Humidity |
: |
0～95%RH（no condensation） |
| ▪ Temperature |
: |
-40℃~+70℃ ，Optional gas sampling gun, can detect |
| |
|
up to 1200 degrees gas concentration |
| ▪ Screen |
: |
3.5-inch hd LCD screen with resolution 320* 480 |
| ▪ Size/weight |
: |
260 x 230 z 120mm / 3700g |
| ▪ Battery |
: |
Large capacity rechargeable lithium battery,5400mAh/11.1V |
| |
|
(internal printer type）or 10000mAh/3.7V （external printer type） |
| |
|
working hours are more than 32h with single gas and |
| |
|
24h with six gases togethe |
