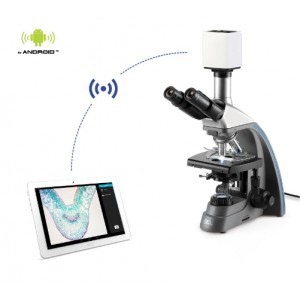

MICROSCOPE TABLET CAMERA SYSTEM

Spesifikasi :

▪	Application	:	Research, Laboratory use and Medical field operations
▪	Optical System	:	Infinity Corrected optics system
▪	Illumination	:	Built in transmitted Koehler illumination with field
			diaphragm 6V 30W Halogen bulb
▪	Eyepieces	:	Extra Wide field WF10x/22 mm
▪	Objectives	:	PLAN ACHROMATIC 4x/0.1; 10x/0.25; 40x/0.65;
		:	100x/1.25 (oil immersion)
▪	Focusing	:	Macrometric and micrometric coaxial knobs on both
			sides (0,002mm)
▪	Observation tube	:	Binocular /Trinocular
		:	Tube inclination 30° tilted, 360° rotable
		:	Interpupillary distance adjustment 55-75mm
		:	Light path sensor (trinocular 100%-0% or 0%-100%
▪	Stage	:	193 x 155mm. Excrution XY: 75X50mm (division 0,1mm)
			Coaxial knobs on right side
▪	Condenser	:	Abbe condenser, N.A 1.25. Equipped with diaphram and
			and filter seat. Height and centering are adjustable
▪	Accessories	:	Protection Cover
		:	Oil Bottle
		:	Certificate of origin for Chamber of Commerce
		:	Manual Book

2. CAMERA
▪	Optical	:	CMOS Sensor 1/3"
▪	Sensor resolution	:	2.0 Mpixel
▪	WIFI resolution	:	1,3 Mpixel

3. TABLET
▪	Operating system	:	Android 4x
▪	CPU	:	Processore intel @ Atom (TM), 1,33 GHz
▪	Internal memory	:	16GB
▪	Network	:	802.11bgn wireless, Bluetooth
▪	Interfaces	:	HDMI, micro SD up to 32GB, Audio
