| Specification : |
|
|
|
|
|
|
| A |
Parameter yang diukur |
|
|
|
|
|
|
| 1 |
COD |
: |
5-200 mg/L (50 test) |
6 |
Chromium (Cr) |
: |
0.02-10 mg/L (50 test) |
| |
|
: |
200-1000 mg/L (50 test) |
7 |
Copper (Cu) |
: |
0.02-10 mg/L (50 test) |
| |
|
: |
1000-2000 mg/L (50 test) |
8 |
Formaldehyde |
: |
0.20-5.0 mg/L (50 test) |
| 2 |
Mercury (Hg) |
: |
0.002-0.04 mg/L (50 test) |
9 |
Lead (Pb) |
: |
0.01-0.50 mg/L (50 test) |
| 3 |
Arsenic (As) |
: |
0.00-0.500 mg/L (50 test) |
10 |
Nickel (Ni) |
: |
0.02-10 mg/L (50 test) |
| 4 |
Cyanide (Cn) |
: |
0.01-0.50 mg/L (50 test) |
11 |
Silver (Ag) |
: |
0.01-1.00 mg/L (50 test) |
| 5 |
Cadmium (Cd) |
: |
0.01-0.50 mg/L (50 test) |
12 |
Zink (Zn) |
: |
0.2-5.0 mg/L (50 test) |
| |
|
|
|
|
|
|
|
| B |

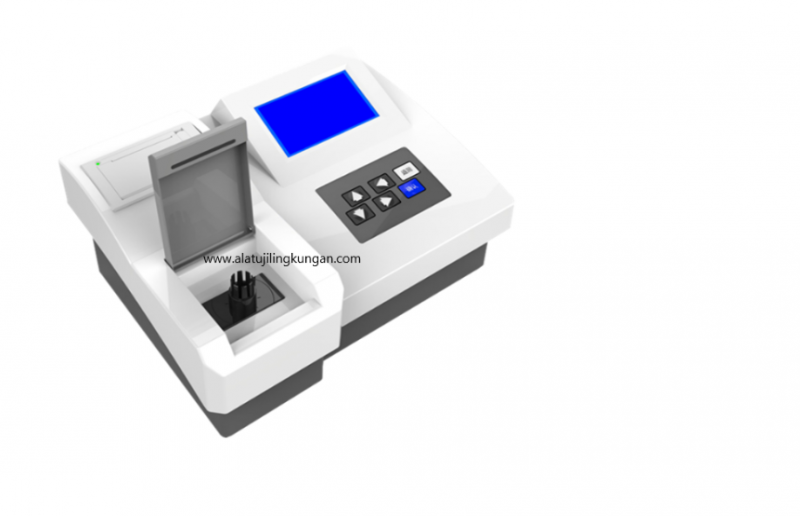

Photometer Portable Water Quality Analyzer |
|
|
|
|
| ▪ |
Panjang Gelombang |
: |
420nm, 440nm, 470nm, 520nm |
|
|
|
|
| |
|
|
540nm, 560nm, 610nm, 630nm, |
|
|
|
| |
|
|
660nm, 700nm |
|
|
|
|
| ▪ |
Max absorbance error |
: |
0.005A |
|
|
|
|
| |
Absorbance range |
: |
-2.00~2.000 |
|
|
|
|
| ▪ |
Stabilitas lensa |
: |
≤0.002A/20min |
|
|
|
|
| ▪ |
Repeatability |
: |
≤3% |
|
|
|
|
| ▪ |
Reading mode |
: |
Concentration, absorbance, |
|
|
|
|
| |
|
|
light transmittance |
|
|
|
|
| ▪ |
Standard tabung |
: |
16mm |
|
|
|
|
| ▪ |
Tabung adaptor |
: |
25mm |
|
|
|
|
| ▪ |
Koneksi ke PC |
: |
USB Port |
|
|
|
|
| ▪ |
Tampilan Layar |
: |
LCD warna cerah |
|
|
|
|
| ▪ |
Proteksi Alat |
: |
Tas terbuat bahan ABS |
|
|
|
|
| |
|
: |
IP65, Kedap air dan terlindung debu |
|
|
| |
|
: |
250ml Botol sampel berpemberat |
|
|
| |
|
: |
COD Reactor (1 unit) |
|
|
|
|
